WINNEO Pad Printing Ink Cup

Features of this product:

Closed Cup Design

Closed ink cup design, save the ink and environmental.



Convenient Ink Refilling

Easy to add ink.



Easy Assembly & Disassembly

Easy to assemble and disassemble, with strong adaptability.



Corrosion-resistant, Sturdy & Non-deformable Cup Body

The corrosion-resistant, sturdy & non-deformable cup body can withstand long-term contact with various inks, avoiding damage from chemical erosion.

Get A Free Quote
Talk With Expert

WINNEO Pad Printing Ink Cup





Most pad printing manufacturers develop their own proprietary ink cups. This locks customers into purchasing new or replacement cups from a single source, often at a premium price.



Winneo offers a practical solution to expensive specialized ink cups. It is compatible with various manufacturers and models, which helps reduce ink cup inventory while maintaining exceptional quality and print performance. This solution enhances your production efficiency and lowers overall costs.

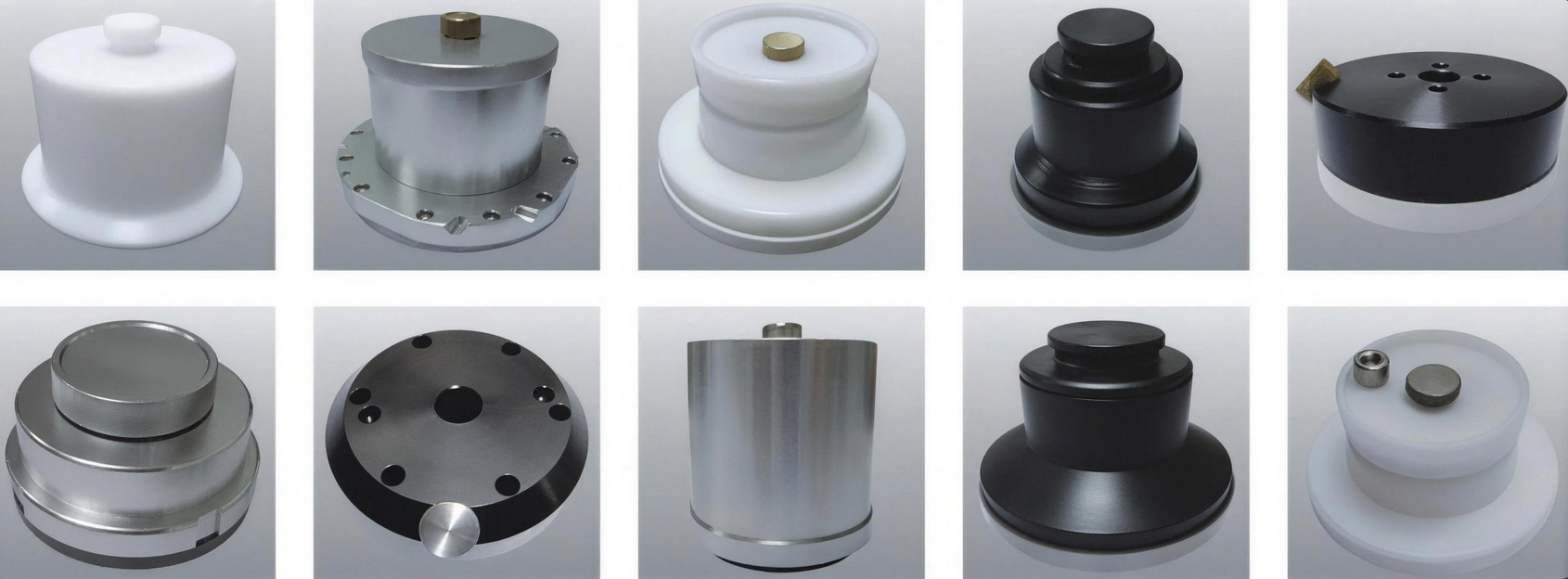

WINNEO offers a diverse range of ink cup types



The inclusion of extra ink cups and doctor rings enhances ink change efficiency. WINNEO cups are not only compatible with other brands of machinery but also serve as a cost-effective source for your purchases.

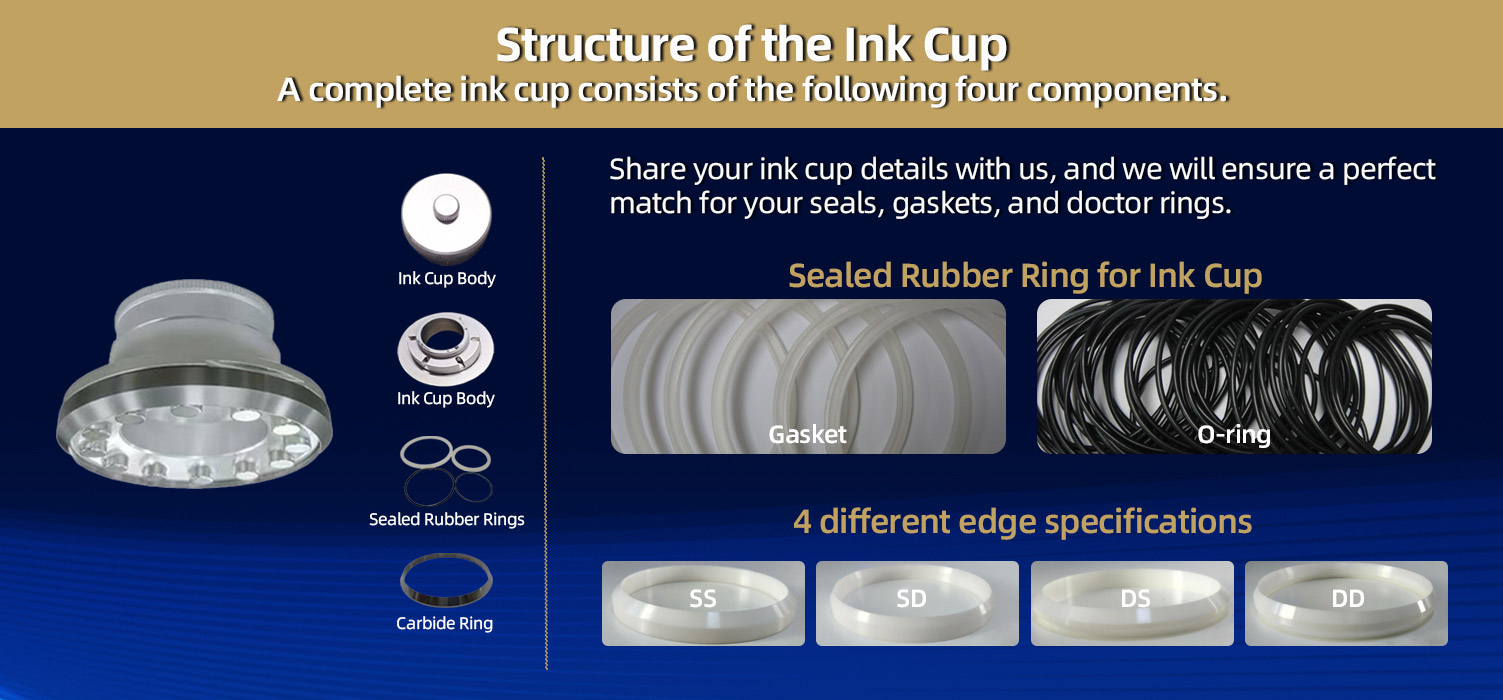

Structure of the Ink Cup

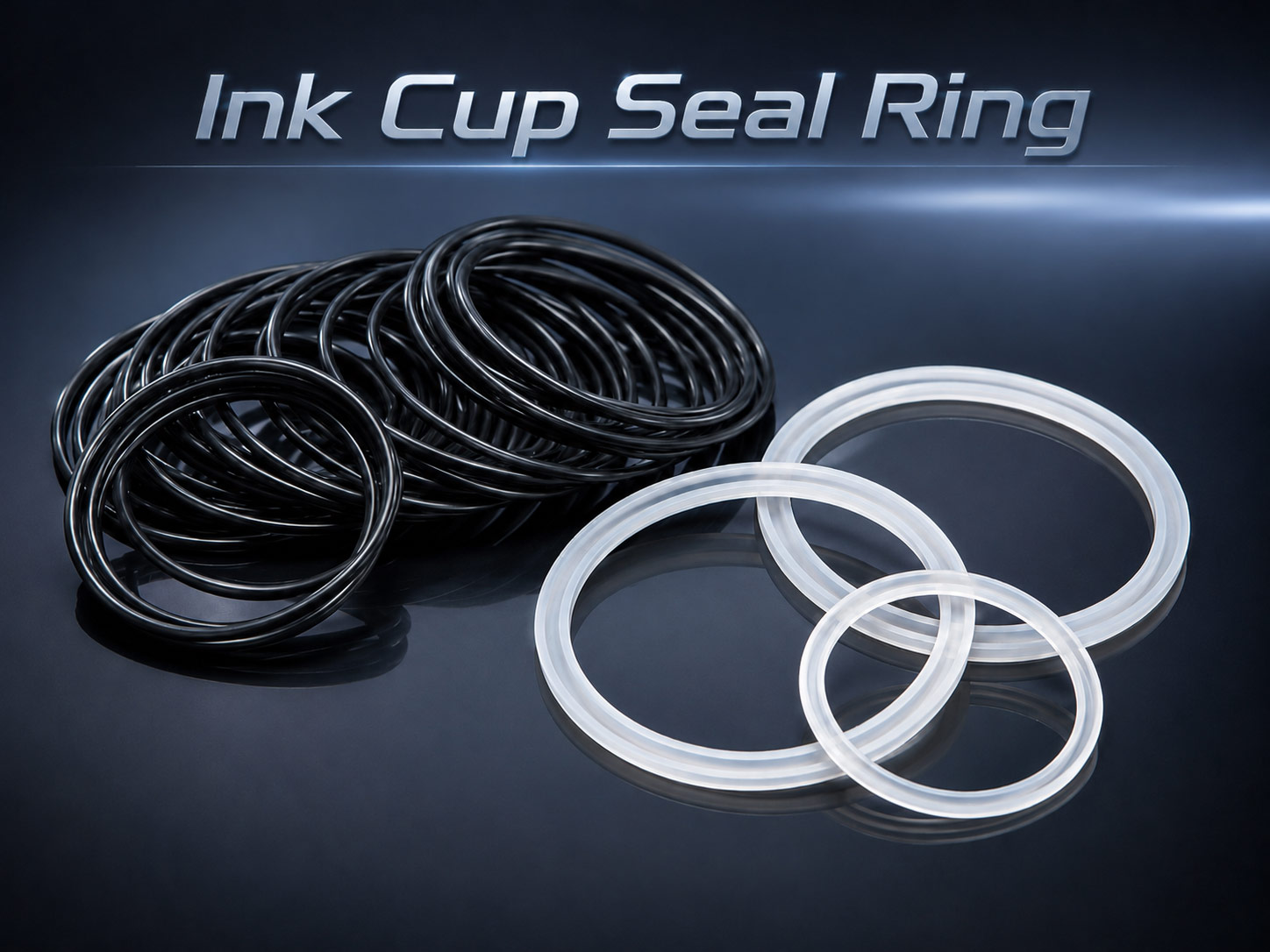

Important Reminder about: Ink Cup Sealing Ring

Designed to form a tight seal between the ink cup and the cliché surface, preventing ink leakage and solvent evaporation, maintaining stable ink viscosity for consistent, high-quality pad printing results. Recommended to replace regularly for optimal sealing performance.

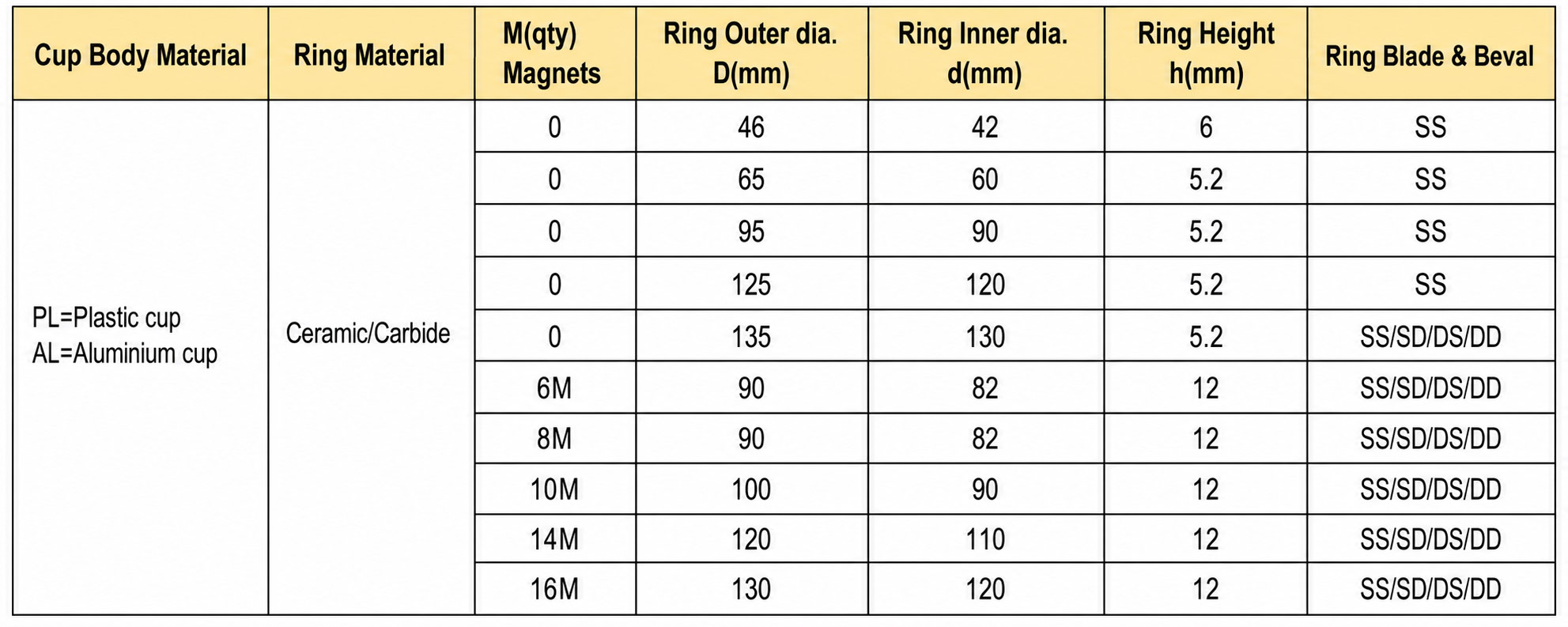

WINNEO pad printing ink cups parameter chart









For an ideal match, consult our team to select the perfect ink cup for your needs.

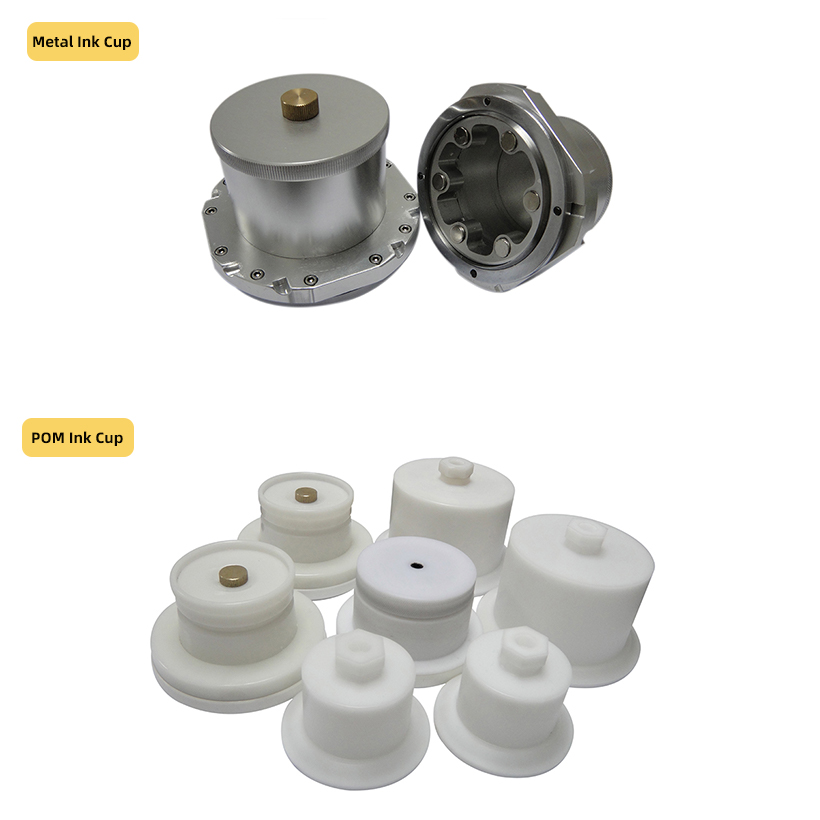

Material selection for the ink cup body



Most of our ink cups are coated with an ink-resistant layer that effectively resists corrosion from inks and solvents, ensuring easy and quick cleaning.



Sturdy and durable, suitable for high-intensity production



High material hardness：Withstands long-term printing wear, resistant to deformation, and ideal for large-scale, high-frequency continuous printing production.


Flexible Customization: Customizable in various metal materials including cemented carbide, and equipped with tungsten steel blade rings, enabling high-precision ink scraping and premium printing results.



---------------------------------------------------------------------------------------------------------------------------



High color stability, resistant to impact and damage



High color reproduction accuracy: POM material does not react chemically with printing inks, preventing ink deterioration and discoloration.



High impact resistance: The cup body is not easily damaged by minor collisions. It features a long service life and reduces replacement frequency.

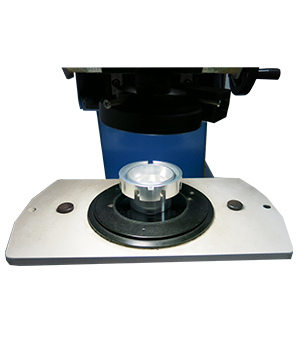

 100% Strict quality check

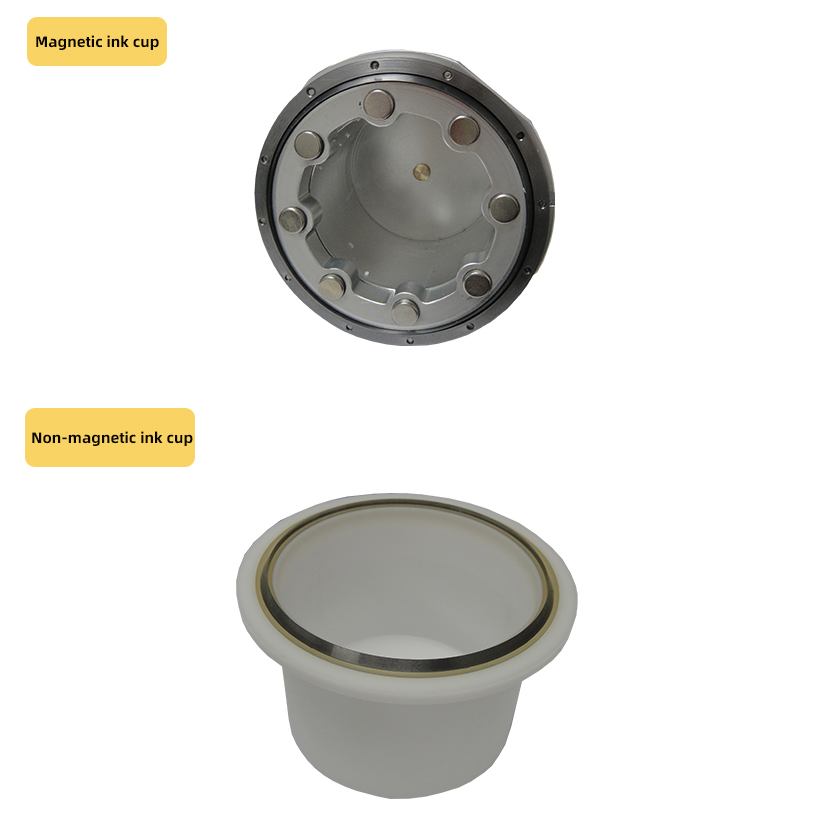

 A guide to magnetic & non-magnetic ink cups





Both types of ink cups ensure a clean printing plate and deliver excellent print results.

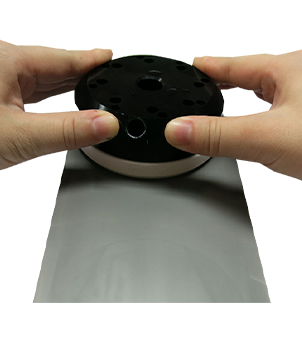

Magnetic ink cup

The magnetic ink cup utilizes a powerful magnetic force to generate sufficient pressure for cleaning the printing plate. The pad printer only needs to slide it back and forth.







Non-magnetic ink cup

Pressure is applied by the pad printer to the outer flange or central bore of the ink cup. This pressure, which requires a fixture, achieves the plate cleaning effect.

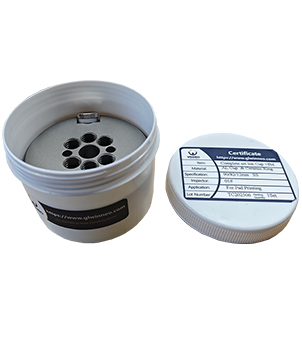

 Safety shipment





Customers Recommend





WINNEO Pad Printing Ink Cups are highly praised by customers.




FAQ


1.How to choose a suitable ink cup?
Match the pad printer model; select material based on ink properties (viscosity, corrosiveness); check if the ring is sharp and wear-resistant.

2.What's the easiest way to clean an ink cup?
Clean it after work to prevent ink from drying and hardening; soak it in a dedicated solvent, and disassemble detachable models first before wiping.

3.What to do if the ink cup leaks?
First check the seal ring—replace it if aged or damaged; then adjust ink viscosity (too thick easily causes overflow); finally check if the doctor blade/ring is worn.

4.What if the ink cup magnet doesn't hold firmly?
Clean ink and impurities off the magnet surface; replace the magnet directly if its magnetism weakens.

5.Why is ink not scraped clean?
First check the doctor blade (wear, gaps); then check if the steel plate is flat or has scratches; finally increase the ink cup pressure.



  •
