Features of this product:
Excellent Environmental Performance
The fully enclosed structure isolates the ink from the outside, prevents the emission of VOCs and the diffusion of odors, avoids environmental pollution, and meets the environmental protection requirements of factories.
Durable Material and Easy Cleaning Characteristics
The core components are made of high-quality materials, which are corrosion-resistant, wear-resistant and have a long service life; the structure is simple without dead corners, making cleaning convenient and cost-saving.
High-Quality Printing and Uniform Ink Scraping Effect

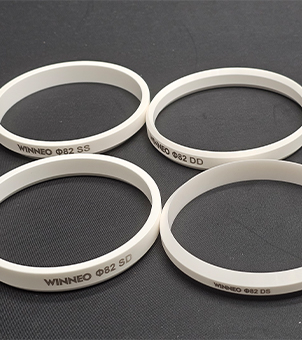

The precision ink scraping blade ring combined with stable control ensures uniform ink scraping, resulting in clear and neat printed patterns with significantly improved quality.
Reduce the loss of consumables
The enclosed structure reduces ink volatilization and deterioration, and precise ink scraping lowers ineffective consumption, thus saving the expenditure on consumables.

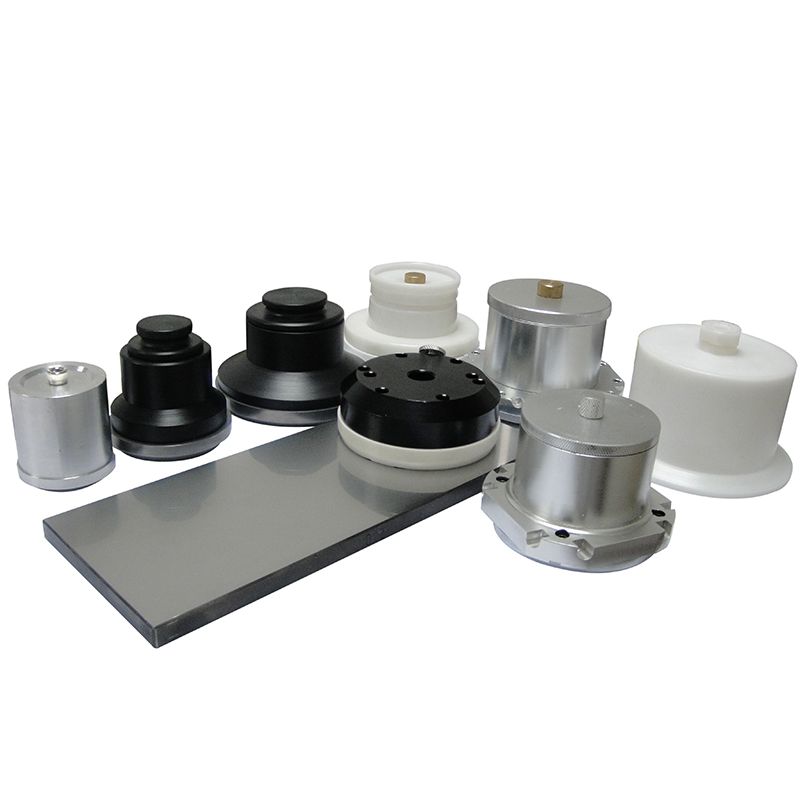

WINNEO Pad Printing Ink Cup
WINNEO Pad Printing Ink Cup Features Highlights
What are the advantages of WINNEO pad printing ink cup?

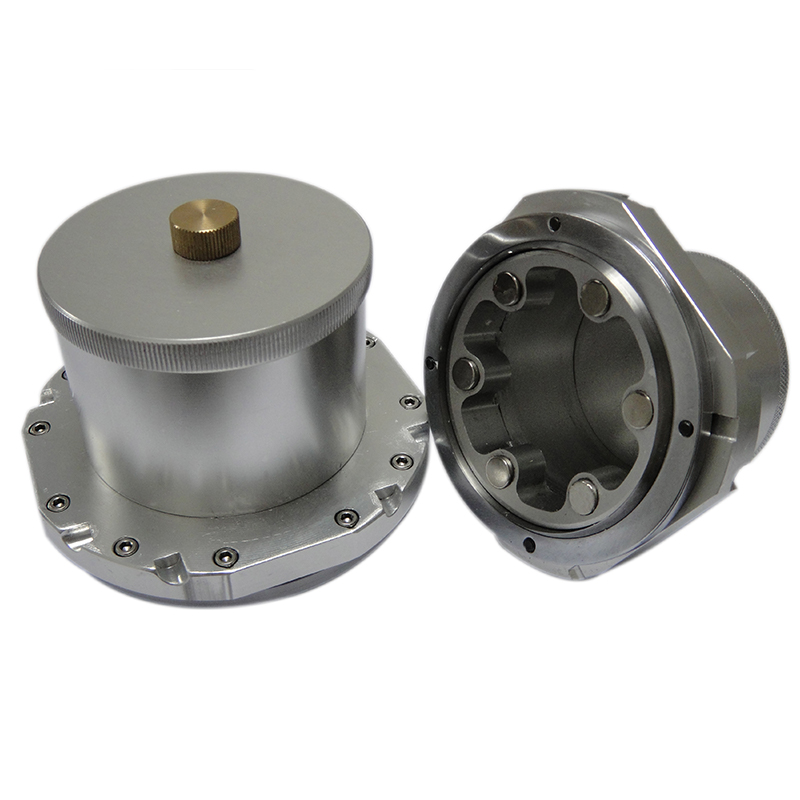

①Superior Environmental Safety: WINNEO pad printing ink cups feature a fully enclosed, magnetically sealed design that minimizes volatile organic compound (VOC) emissions and prevents ink leakage. This not only eliminates unpleasant odors in the workshop but also meets strict industrial environmental standards, protecting both operators and the workspace.
②Enhanced Durability & Easy Maintenance: Constructed with high-grade materials—such as hardened aluminum alloy casings and wear-resistant zirconia blades—WINNEO ink cups resist corrosion from various inks and solvents. Their smooth, seamless internal structure simplifies cleaning, reducing downtime and extending service life significantly compared to standard models.
③Precision Printing Quality: Equipped with precision-engineered doctor blades and stable pressure control, WINNEO ink cups ensure uniform ink scraping across both thick and thin plates. This consistency results in sharp, clear prints with even color distribution, ideal for high-precision applications like electronics and automotive parts.
④Cost Efficiency: The enclosed design reduces ink waste by minimizing evaporation and oxidation, while the durable components lower replacement frequency of consumables (e.g., blades).
⑤Versatility & Compatibility: WINNEO ink cups are designed to fit most standard pad printing machines, with customizable sizes available for specific production needs. Whether handling small intricate patterns or large surfaces, they adapt seamlessly to diverse printing requirements, enhancing workflow flexibility.

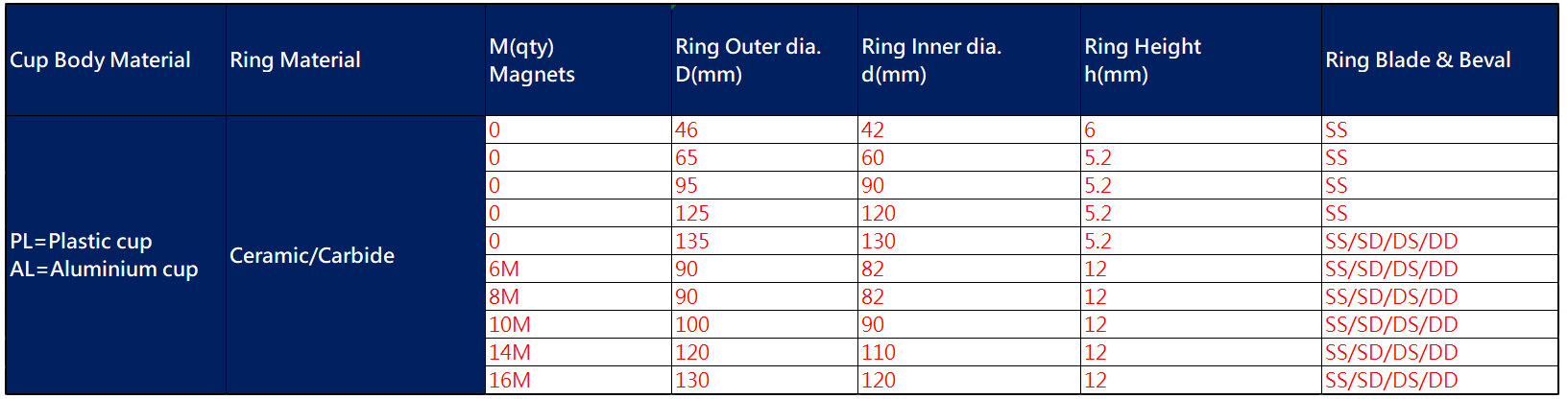

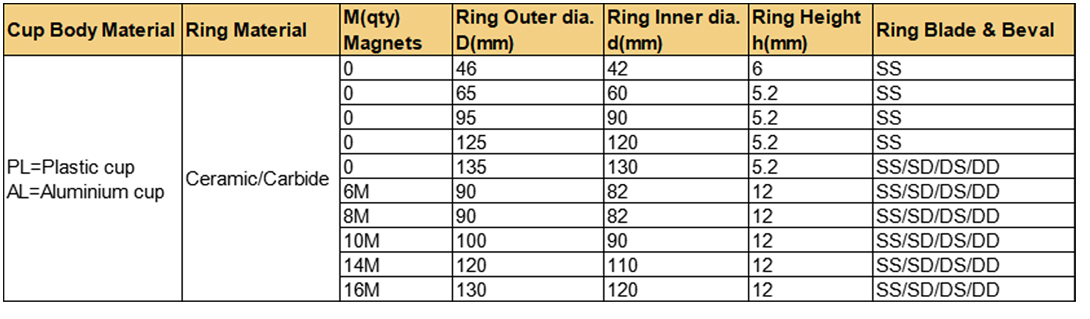

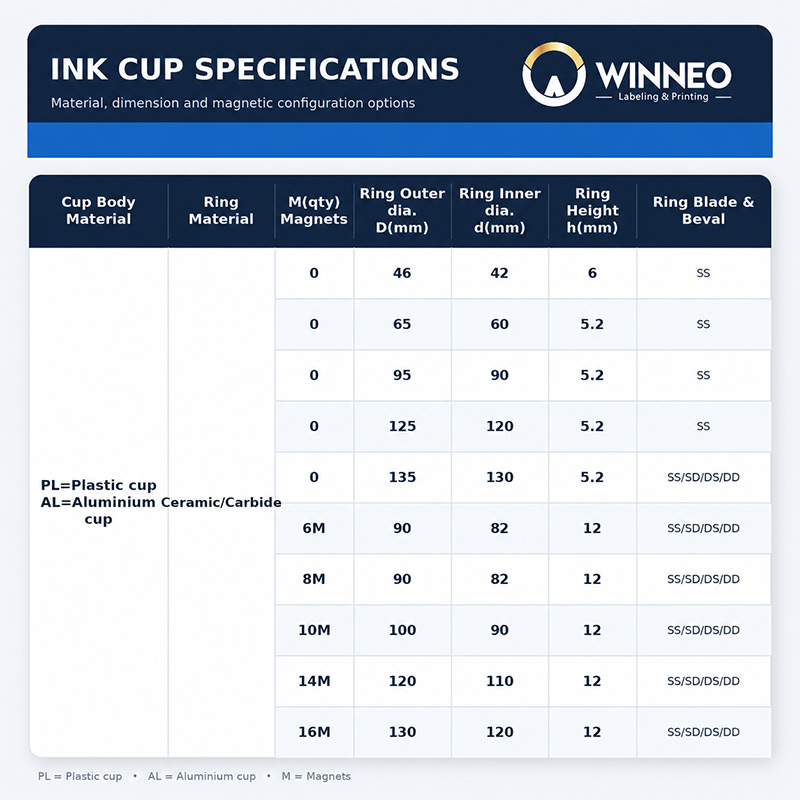

WINNEO Pad Printing Ink Cup Parameter

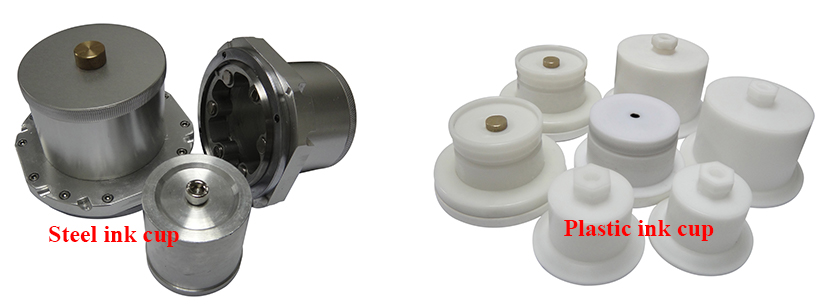

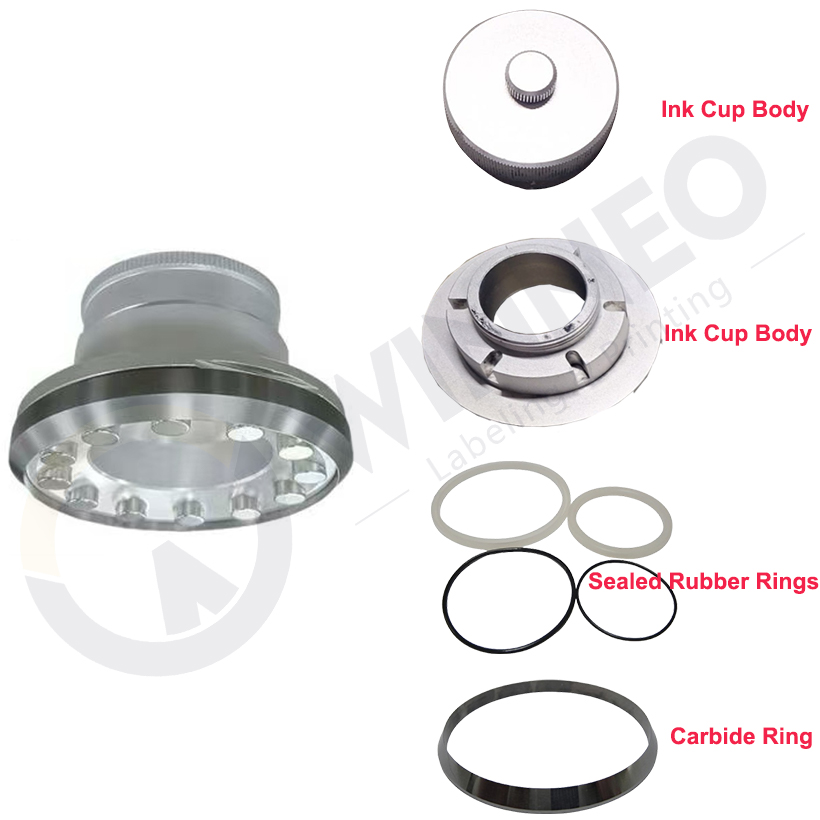

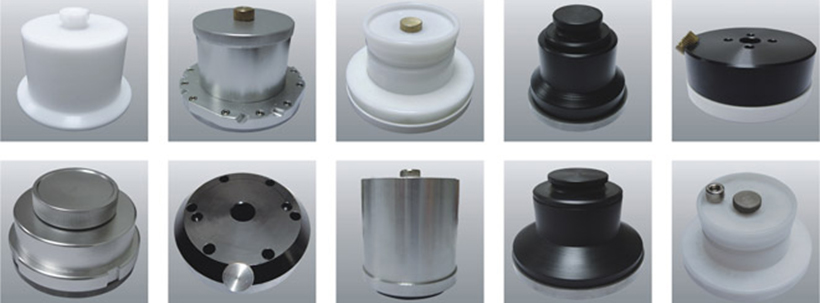

Product details display

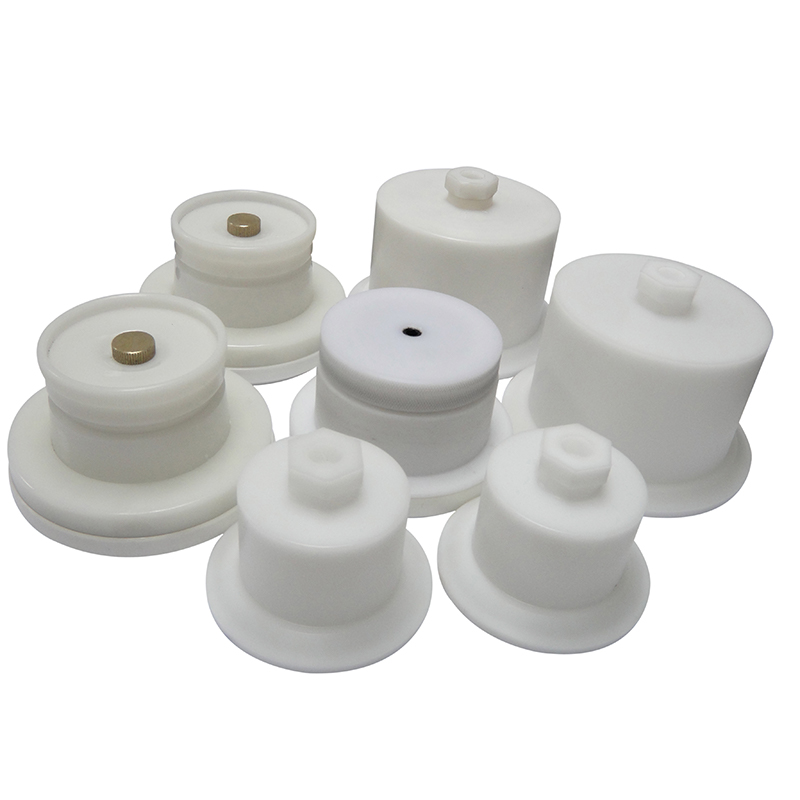

Various shapes of rubber tips can be customized.
Pad printing pad mold making.
Pad printing pad making.
WINNEO Standard
Customers' quality requirements for products
1.Environmental Compliance: Must meet industrial environmental standards, with low VOC emissions and sealed design to prevent ink leakage and odor pollution.
2.Durable & Easy to Maintain: Requires high-grade, corrosion-resistant materials (e.g., zirconia blades) for long service life, plus easy cleaning to reduce downtime.
3.High Printing Precision: Demands uniform ink scraping, sharp pattern edges, and consistent color to adapt to high-precision scenarios like electronics.
4.Cost-Effectiveness: Needs minimal ink waste, low consumable replacement frequency, and efficient maintenance to cut overall production costs.
5.Strong Compatibility: Compatibility with most standard pad printing machines, with customizable sizes for diverse needs.

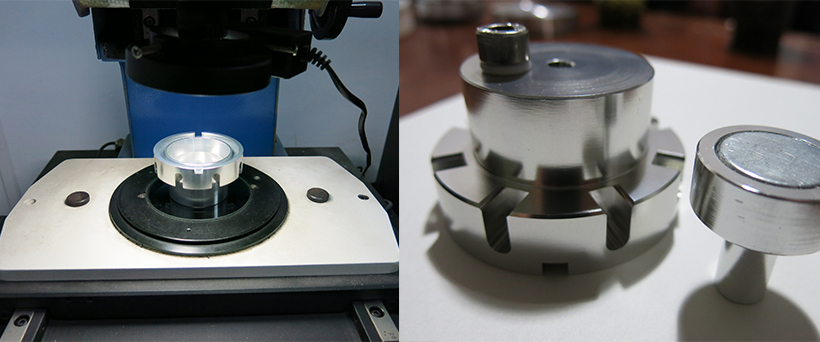

100% Strict Quality Check

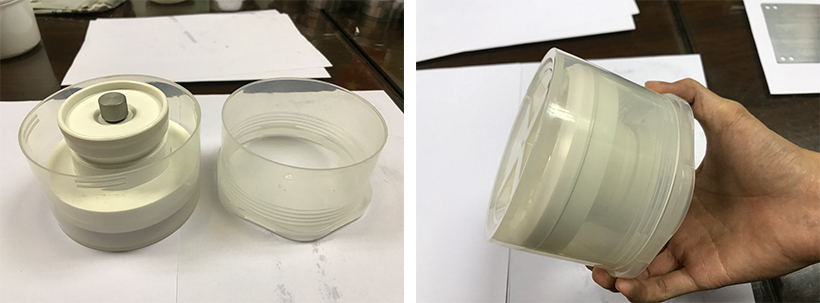

Safety Package
Customers Recommend
WINNEO's pad printing pad is highly praised by customers.
FAQ

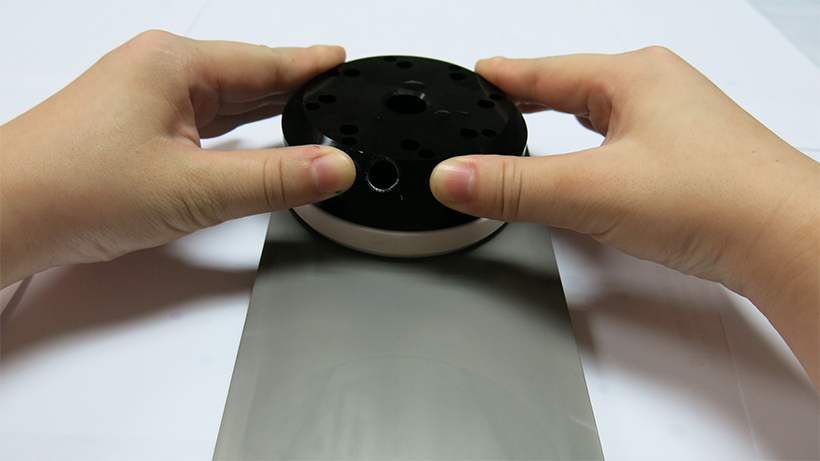

1. What precautions should I take when installing a pad printing ink cup?

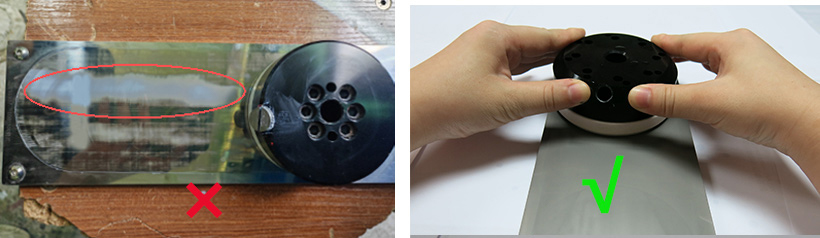

During installation, ensure the cup is parallel to the pad printing plate and fits snugly. Otherwise, the squeegeeing effect will be affected. Some cups have adjustable suction force, but the proper pressure should be adjusted to avoid excessive suction, which could damage the squeegee, or insufficient suction, which could cause ink leakage.
2. How should I maintain the pad printing ink cup on a daily basis to minimize malfunctions?
After each use, clean any residual ink from the inside of the cup and on the squeegee. Due to its simple design, this can be easily removed by rinsing or wiping with a solvent. Regularly check the squeegee for wear and replace any severe wear. Also, ensure the seal of the cup is secure to prevent ink leakage.
3. What sizes of pad printing ink cups do you offer?
We offer a variety of standard sizes, including metal cups in sizes of 74x70mm, 90x82mm, and 135x130mm. We also offer cups made of various materials, such as sintered steel. We also offer custom sizes to meet your specific needs.
4. What are the advantages of a pad printing ink cup over a traditional open tray?
The pad printing ink cup utilizes a sealed structure, reducing ink evaporation by over 70% compared to traditional open trays. This saves approximately 0.5 liters of ink per eight-hour shift, resulting in cumulative cost savings exceeding 10,000 yuan per year. Furthermore, it reduces ink mist concentration in the workshop air to below 0.5 mg/m³, far below the national standard, ensuring a cleaner operating environment.

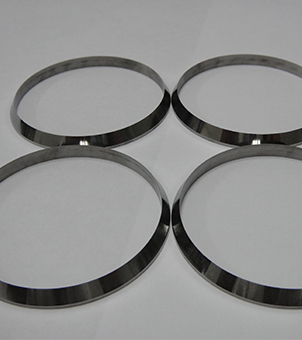

이 제품의 특징:고정밀 가공최첨단 CNC 연삭 기술을 채택하여 날 끝이 링 본체와 동심원을 이루도록 합니다. 이를 통해 전사 과정에서 잉크가 고르게 긁히는 현상을 최소화하여 미세 패턴에도 일관된 인쇄 품질을 보장합니다.내구성 있는 소재 선택세라믹 또는 텅스텐 카바이드로 제작되어 잉크 및 기판(예: 플라스틱, 금속)과의 반복적인 접촉으로 인한 마모를 방지합니다. 일반 탄소강 대비 수명이 30% 연장됩니다.최적화된 블레이드 엣지 디자인블레이드 모서리는 미세 경사 구조(각도 조절: 30°/45°/60°)를 갖추고 있어 다양한 잉크 점도(수성, 용제성, UV 경화) 및 기판 표면(매끄러움/거침)에 맞게 조정할 수 있습니다. 잉크가 쌓이거나 과도하게 긁히는 것을 방지하여 재작업률을 낮춥니다.
세부
이 제품의 특징:고정밀 가공최첨단 CNC 연삭 기술을 채택하여 날 끝이 링 본체와 동심원을 이루도록 합니다. 이를 통해 전사 과정에서 잉크가 고르게 긁히는 현상을 최소화하여 미세 패턴에도 일관된 인쇄 품질을 보장합니다.내구성 있는 소재 선택세라믹 또는 텅스텐 카바이드로 제작되어 잉크 및 기판(예: 플라스틱, 금속)과의 반복적인 접촉으로 인한 마모를 방지합니다. 일반 탄소강 대비 수명이 30% 연장됩니다.최적화된 블레이드 엣지 디자인블레이드 모서리는 미세 경사 구조(각도 조절: 30°/45°/60°)를 갖추고 있어 다양한 잉크 점도(수성, 용제성, UV 경화) 및 기판 표면(매끄러움/거침)에 맞게 조정할 수 있습니다. 잉크가 쌓이거나 과도하게 긁히는 것을 방지하여 재작업률을 낮춥니다.
세부
이 제품의 특징:높은 경도일반적으로 오일 코팅 강철 및 크롬강과 같은 소재로 제작되며, HRC60-64의 경도를 달성하여 장기적인 내마모성을 보장합니다. 크롬강판은 수십만 회의 인쇄 사이클을 견딜 수 있으며, 오일 코팅 강철판은 50,000회 이상의 인쇄 사이클을 견딜 수 있습니다. 높은 평탄도 및 매끄러움고품질 강철을 사용하고 세심한 가공을 거쳐 높은 평탄도와 매끄러움을 달성하여 깨끗한 긁힘과 누출 없는 잉크를 보장하며, 정밀한 그래픽 인쇄의 요구 사항을 충족합니다. 높은 내식성뛰어난 녹 및 부식 방지 기능을 갖추고 있어 다양한 작업 환경에서 사용하기에 적합하며, 녹을 방지하고 서비스 수명을 연장합니다. 정밀 패턴 에칭패턴의 정밀한 에칭이 가능하여 바닥 표면이 매끄럽고 선과 점이 모두 우수하게 표현됩니다. 완전한 사양 범위다양한 두께와 크기를 제공합니다. 일반적인 강판 두께는 0.25mm, 0.3mm, 0.5mm이며, 강판 크기는 3×4, 4×4, 3×6입니다. 맞춤 사양도 제작 가능합니다.
세부
이 제품의 특징:고정밀 가공최첨단 CNC 연삭 기술을 채택하여 날 끝이 링 본체와 동심원을 이루도록 합니다. 이를 통해 전사 과정에서 잉크가 고르게 긁히는 현상을 최소화하여 미세 패턴에도 일관된 인쇄 품질을 보장합니다.내구성 있는 소재 선택세라믹 또는 텅스텐 카바이드로 제작되어 잉크 및 기판(예: 플라스틱, 금속)과의 반복적인 접촉으로 인한 마모를 방지합니다. 일반 탄소강 대비 수명이 30% 연장됩니다.최적화된 블레이드 엣지 디자인블레이드 모서리는 미세 경사 구조(각도 조절: 30°/45°/60°)를 갖추고 있어 다양한 잉크 점도(수성, 용제성, UV 경화) 및 기판 표면(매끄러움/거침)에 맞게 조정할 수 있습니다. 잉크가 쌓이거나 과도하게 긁히는 것을 방지하여 재작업률을 낮춥니다.
세부
Features of this product: Precise transfer printing The surface is fine, which can accurately absorb ink and completely transfer it to the workpiece, ensuring clear patterns. Wide adaptability Can be customized into different shapes and sizes, suitable for curved and special-shaped workpieces, meeting various printing needs. Anti-static rubber head optional Low surface resistance, reducing dust adsorption and avoiding pattern defects caused by static electricity during printing. Solvent corrosion resistance Can withstand various ink solvents, not easy to swell or harden, adapting to complex printing environments.
세부
Features of this product: Excellent Environmental Performance The fully enclosed structure isolates the ink from the outside, prevents the emission of VOCs and the diffusion of odors, avoids environmental pollution, and meets the environmental protection requirements of factories. Durable Material and Easy Cleaning Characteristics The core components are made of high-quality materials, which are corrosion-resistant, wear-resistant and have a long service life; the structure is simple without dead corners, making cleaning convenient and cost-saving. High-Quality Printing and Uniform Ink Scraping Effect The precision ink scraping blade ring combined with stable control ensures uniform ink scraping, resulting in clear and neat printed patterns with significantly improved quality. Reduce the loss of consumablesThe enclosed structure reduces ink volatilization and deterioration, and precise ink scraping lowers ineffective consumption, thus saving the expenditure on consumables.
세부
