집 패드 인쇄 반자동 표준 패드 인쇄기

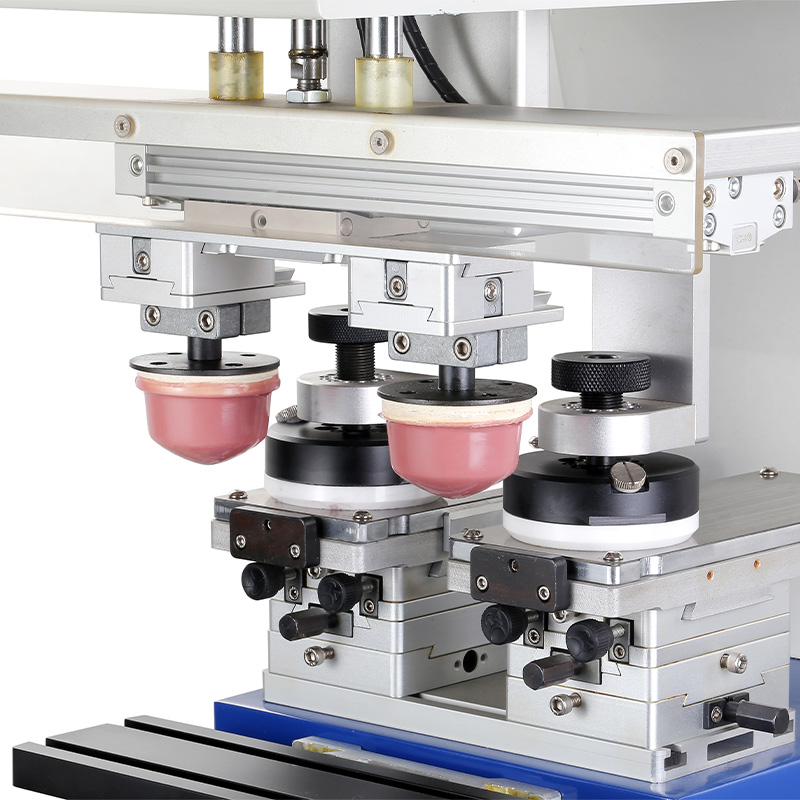

Semi-automatic Double Color Standard Ink Cup/Open Tray Pad Printing Machine

Features of this machine:

Thickened steel plate for the fuselage ensures stable machine operation.
High-precision CNC-machined components enable high-accuracy equipment performance.
Original FESTO/SMC brand components guarantee extremely low failure rates.
WINNEO's full-chain QC system and user inspection standards ensure 100% normal commissioning of equipment.
Strict packaging processes and implementation standards ensure safe transportation without worries.
24/7 after-sales service response provides hassle-free support for global users.

Get A Free Quote

Talk With Expert

제품 카테고리

신제품

제품 세부정보

Technical Parameters

THE TECHNICAL PARAMETER
Model	WP-2C125	WP-2C160	WP-2C200	WP-2C250
Stroke For Front And Rear Cylinder	125	160	200	250
Weight（kg）	90	138	200	230
Machine Dimensions（mm）	460X680X1400	510X800X1450	600X1000X1500	650X1050X1500
Can Be Equipped With Safety Protective Covers	√	√	√	√
Can Be Equipped With Hot Air Drying	√	√	√	√
Can Be Equipped With Cleaning System	√	√	√	√
Steel Plate Size（mm）	100 × 200	100 × 250	100 × 300	100 × 350
Maximum Printing Speed (pcs/hr)	1500	1300	1100	900
Standard Ink Cup	Φ90 mm ink cup
Air Pressure（bar）	5–7 Bar
Power Supply	110V/220V 60/50Hz 40W
Ink Scraping Methods	Ink Cup and Open Tray Types

Optional Features

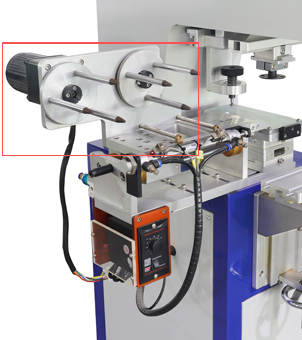

Cleaning System
It can remove excess ink from the rubber head, prevent residual ink from affecting the next printing, and ensure clean pattern printing.

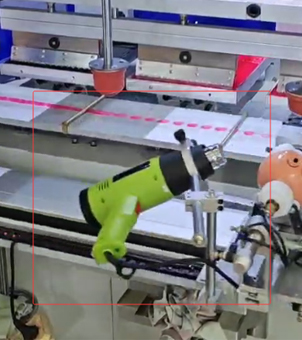

Drying System
It can rapidly cure ink, prevent smudging and bleeding, boost efficiency, reduce defects, and ensure printing quality and productivity.

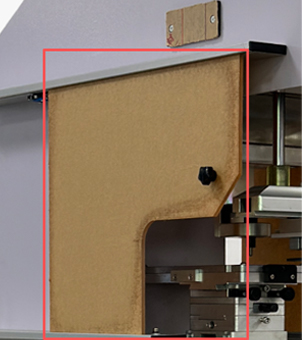

Safety Door
It can ensure the safety of operators, protect the equipment, and maintain stable printing processes.

FAQ

1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
